Description
| Category | Specification |

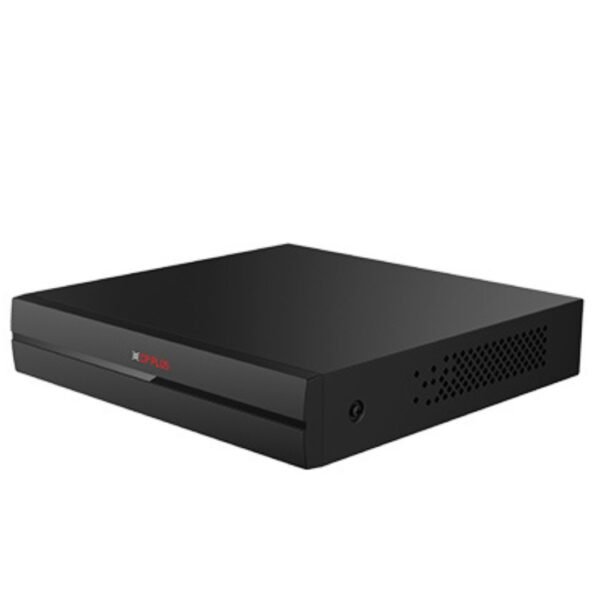

| Model | CP‑UVR‑0401E1‑IC2 |
| Type | 4‑channel hybrid DVR (supports HDCVI/AHD/TVI/CVBS/IP) Laxmi Enterprises CCTV Camera Dealer+14CP PLUS+14quantumbyte.in+14 |
| Video Inputs | 4 analog BNC + up to 1 IP channel (max 2 MP), 20 Mbps incoming bandwidth CP PLUSthehypertech.co |
| Recording Resolution | Main: 1080N / 720P / 960H / D1 / CIF at 1–25/30 fps; Sub: CIF at 1–15 fps CP PLUSavatron.in |
| Video Compression | AI Instastream, Instastream, H.265+, H.265, H.264+, H.264 CP PLUSthehypertech.co |
| Display Modes | 1‑ or 4‑way video display split CP PLUSavatron.in |
| Smart Search (AI) | SMD Plus: human/vehicle classification, 396 motion zones (22×18 grid) CP PLUSavatron.in |
| Audio I/O | 1× RCA input, 1× RCA output; compression formats: G.711A/U, PCM CP PLUSavatron.in |
| Storage | 1× SATA HDD, up to 6 TB CP PLUSthehypertech.co |
| USB Ports | 2× USB 2.0 for backup and peripheral support CP PLUSavatron.in |
| Display Output | 1× HDMI + 1× VGA (simultaneous) CP PLUSavatron.in |
| Network & Protocols | 1× RJ‑45 (100 Mbps); supports TCP/IP, IPv4/IPv6, UPnP, RTSP, SMTP, DHCP, DNS, DDNS, FTP, Alarm Server, InstaOn, IP Search, ONVIF 16.12, CGI CP PLUSavatron.in |
| Recording Modes | Manual, scheduled (continuous), MD, alarm, stop; pre-record (1–30 s), post-record (10–300 s); intervals 1–60 min CP PLUSthehypertech.co |
| Search Options | Time/date, motion detection, alarm, exact (to the second) CP PLUSavatron.in |
| Playback Features | Play, pause, stop, rewind, fast, slow, next/prev file or camera, full-screen, repeat, shuffle, digital zoom, backup CP PLUSavatron.in |
| Alarm & Trigger Events | Recording, PTZ control, tour, video push, email alerts, FTP upload, snapshot, buzzer & screen tips CP PLUSthehypertech.co |
| Users | Up to 128 multi‑user accounts CP PLUSavatron.in |
| Bitrate | 32–4096 kbps per channel CP PLUSavatron.in |
| Mobile & CMS App | iCMOB & gCMOB (mobile); KVMS Pro / Lite (desktop) CP PLUSquantumbyte.in |
| Power | 12 V DC @1.5 A; <7–10 W (without HDD) CP PLUSavatron.in |
| Environment | Operating: –10 °C to +45 °C; 10–90 % RH CP PLUSavatron.in |
