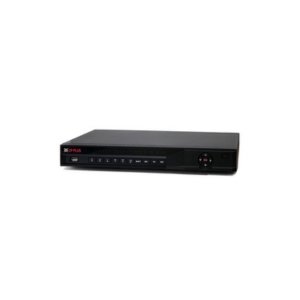

CP-UNR-4K4322-V3, CP PLUS 32Ch. 4K NVR

Login to view prices

  • 32 Channel Support: Manage and record up to 32 IP cameras simultaneously.
  • 4K UHD Resolution: Records video in ultra-high-definition (3840×2160) for clear, detailed footage.
  • H.265+ Compression: Advanced compression technology for efficient storage and bandwidth management.
  • PoE Support: Powers compatible IP cameras directly through the network cable (if supported).
  • Large Storage Capacity: Supports up to 64TB of storage, ideal for extensive video recording.
  • Motion Detection: Smart motion-triggered recording for optimized storage use.
  • Remote Access: Access live and recorded footage remotely via mobile app (Android/iOS) or web interface.
  • Multiple Display Outputs: HDMI (4K) and VGA outputs for local viewing on monitors.
  • Flexible Recording: Includes scheduled, manual, and motion-triggered recording features.
  • User-Friendly Interface: Easy-to-use interface for seamless setup and operation.
Feature Description
Product Model CP-UNR-4K4322-V3
Product Name CP PLUS 32Ch. 4K NVR
Type Network Video Recorder (NVR)
Channels 32 Channels
Resolution Supported Supports 4K UHD (up to 3840×2160) resolution for high-definition video recording
Input/Output Ports 32 x IP Camera Inputs, 1 x HDMI Output (4K), 1 x VGA Output, 1 x Ethernet Port (10/100/1000 Mbps)
Recording Capacity Capable of recording high-definition video from up to 32 IP cameras simultaneously
Storage Capacity Supports HDD storage, with the capacity to handle up to 64TB of storage (depends on HDD size used)
Compression Format H.265+ / H.265 / H.264+ / H.264 for high-quality video compression to reduce storage requirements
Audio Support 2-way Audio support, including built-in microphone and speaker
Power Supply 12V DC
PoE (Power over Ethernet) Yes, for powering compatible IP cameras directly via network cable (if cameras support PoE)
Operating System Linux-based Operating System
User Interface Web-based interface, mobile app support (Android/iOS), local viewing via HDMI/VGA output
Motion Detection Yes, with adjustable sensitivity and detection zones for more efficient recording
Remote Access Remote viewing and management via Mobile App (Android/iOS), Web Interface, and NVR client software
Recording Features Scheduled recording, manual recording, motion-triggered recording, and playback capabilities
Operating Temperature -10°C to 55°C
Mounting Desktop or Rack Mount
Dimensions Approximately 18″ x 14″ x 3.5″ (Dimensions may vary based on model configuration)
Weight Approximately 5 kg
Applications Ideal for large-scale surveillance systems, office security, commercial surveillance, industrial applications, and enterprise-level video monitoring
Warranty 1-Year Manufacturer Warranty
