Description
| Feature Category | Specifications |

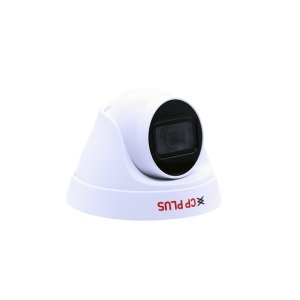

| Model Name | CP‑URC‑DC24PL2C‑V3 |
| Camera Type | Indoor analog dome camera with built‑in microphone (audio support) avatron.in+10Tech Guru Store+10CP Plus+10Amazon India |
| Image Sensor | 1/2.7″ CMOS, 2.4 MP (0.9407 cm) CP Plusm.askmesolutions.in |
| Resolution & Frame Rate | 2.4 MP Full HD; up to 25/30 fps @ 2.4 MP; supports 25/30/50/60 fps at 720p CP Plusm.askmesolutions.in |
| Lens Options | Standard 3.6 mm fixed lens (2.8 mm optional); aperture F2.0 CP Plusm.askmesolutions.in |
| Angle of View | 3.6 mm lens: D 99° • H 83° • V 44°; 2.8 mm lens: D 120° • H 100° • V 53° CP Plusm.askmesolutions.in |
| Low-Light Performance | Min. illumination 0.04 Lux/F2.0 (30 IRE); 0 Lux with IR on CP Plusm.askmesolutions.in |
| Night Vision | Smart IR LEDs with 20 m IR range CP PlusCP Plusm.askmesolutions.in |
| Day/Night Switching | ICR auto/manual; includes DWDR, BLC, HLC, AGC, 2D-DNR, AWB CP Plusm.askmesolutions.in |
| Backlight Compensation | Supports BLC, HLC, and DWDR CP Plusm.askmesolutions.in |
| Signal Output | Switchable HD analog via BNC / CVBS output CP Plusm.askmesolutions.in |
| Audio | Built‑in microphone for audio capture CP PlusTech Guru Store |
| OSD & Control | Multi-language OSD menu; controlled over coaxial cable CP Plusm.askmesolutions.in |
| S/N Ratio | >65 dB CP Plusm.askmesolutions.in |
| Shutter Speed | PAL: 1/25–1/100 000 s; NTSC: 1/30–1/100 000 s CP Plusm.askmesolutions.in |
| Operating Temperature | –40 °C to +60 °C; RH <95% CP Plusm.askmesolutions.in |
| Power | 12 V DC ±30%; power draw max 2.3 W (with IR on) CP PlusCP Plusm.askmesolutions.in |
| Housing & Build | Plastic casing; dome form factor; board-level mount CP Plusm.askmesolutions.in |
| Dimensions | Ø 85 mm × 69 mm height CP Plusm.askmesolutions.in |
