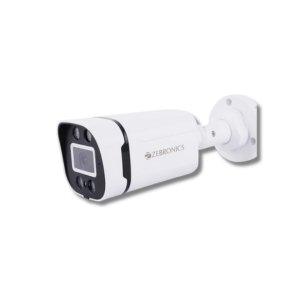

Description
| Image processor | 1/2.9″ 5MPL hd cmos sensor |
| Minimum illumination | Color : 0.01 lux@F2.0, AGC ON |
| B/W : 0 lux with IR | |
| Image Sensor | 1/2.9″ cmos sensor |
| Shutter speed | 1/50(1/60) to 1/100,000 seconds |
| Angle of view | 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) |
| Scanning system | Progressive Scan |
| Lens | |
| Focus Length | 3.6 mm (Fixed) |
| Mount Type / Lens | M12 |
| Focus Control | Fixed |
| Lens Type | Removable |
| Auto Iris | Support |
| Lens | 3.6mm |
| Max. Aperture | F2.0 |
| Night Vision | |
| IR Cut filter | Yes |
| IR Range | 20M |
| IR Power On | Auto Control |
| Camera Features | |
| No of IR LEDs | 4 array IR LED |
| Day/Night | Support |
| Noise Reduction | 3D NR |
| Picture Adjustment | Yes |
| WDR | Yes |
| White Balance | Automatic |
| AGC (Gain Control) | Auto / Manual |
| ICR (Infrared Cut Removable Filter) | Auto(ICR) / Color / B/W |
| Back Light Compensation | BLC / HLC / WDR |
| Video output | CVI: (1920x1080p) @25/30fps; 720p@25/30fps; |
| AHD: (1920x1080p) @25/30fps; 720p@25/30fps | |
| TVI: (1920x1080p) @25/30fps; 720p@25/30fps; | |
| CVBS: 960H(PAL/NTSC) | |
| Video Compression | H.265 |
| Weatherproof Standard | IP66 Weather-Proof |
| S/N Ratio | >50dB |
| General | |
| Power Consumption | DC12V±10%, 500mA |
| Operating Temperature | 10°C ~ +60°C/ Less than 95%RH |
| Weight | 190g |
| Body type | ABS Plastic |
| Dimension (W xD x H) | 5.7 x 19.1 x 5.4 cm |
| Country of Origin | India |
| Package Contents | |
| CCTV Camera | 1 U |
| Mounting Kit | 1 U |
| QR Code User Manual | 1 U |
