CP-UNC-TA21L3B-LQ-0360
Login to view prices
-

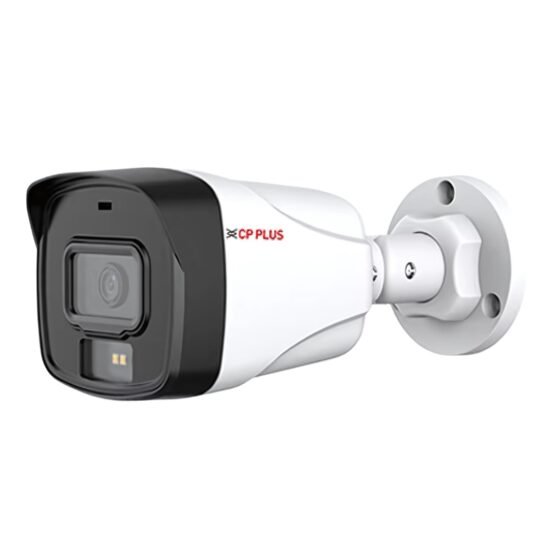

2MP Full HD Bullet Camera with 1/2.7″ CMOS sensor.
-
Dual-Light Technology (IR + Warm LED) for color night vision up to 30m.
-
3.6mm Fixed Lens with wide-angle view (~86° horizontal).
-
Built-in Mic and Speaker for 2-way audio communication.
-
Smart Motion Detection (SMD) with human/vehicle classification.
-
H.265 Compression and triple stream support for bandwidth efficiency.
-
DWDR, BLC, HLC & 3D DNR for clear images in any lighting.
-
Weatherproof (IP67) & Vandal-Resistant (IK10) housing.
-
PoE and 12V DC power options for flexible installation.
-
ONVIF Compatible and works with CP Plus Smart NVRs.
| Feature | Specification |
| Image Sensor | 1/2.7″ 2 MP Progressive‑Scan CMOS (~0.94 cm) CP PLUS+11CP PLUS+11Nbts Online+11 |
| Max Resolution & Frame Rate | 1920 × 1080 @25/30 fps CP PLUSNbts Online |
| Video Compression | InstaStream, H.265, H.264 variants, MJPEG (sub‑stream) CP PLUSNbts Online |
| Streaming Capability | Triple stream support CP PLUSNbts Online |
| Lens | 3.6 mm fixed‑focal, F1.4, M12 mount (optional 2.8 mm) CP PLUSCP PLUS |
| Field of View | ~86° H, 46° V, 103° Diagonal CP PLUSCP PLUS |
| Minimum Illumination | 0.001 lux @ F1.4 (color & B/W); 0 lux with IR/warm light CP PLUSCP PLUS |
| IR & Warm Light | Single dual-light LED; Smart IR + warm white; up to 30 m each CP PLUSCP PLUS |
| Day/Night & Image Enhancements | ICR auto/manual; DWDR, BLC, HLC, 3D DNR, ROI (4), privacy masks (4), watermarking, AGC, AWB CP PLUSCP PLUS |
| DORI Ranges (3.6 mm) | Detect: 53.8 m • Observe: 21.5 m • Recognize: 10.8 m • Identify: 5.4 m CP PLUSCP PLUS |
| Shutter Speed | Auto/manual 1/3 s – 1/100,000 s CP PLUSCP PLUS |
| Audio | Built-in mic and speaker; codecs G.711a/μ, PCM, G.726, AAC CP PLUSCP PLUS |
| Smart Detection | Motion detection (4 zones); human & vehicle SMD CP PLUSNbts Online |
| Smart Search Compatibility | Works with CP‑Plus Smart NVR (IntelliSearch) CP PLUSCP PLUS |
| Network & Security | IPv4/6, HTTPS/SFTP/SNMPv3/TLS 1.2, ONVIF S/G/T, AES 256-bit, IP/MAC filter, account lockout, syslog, secure boot CP PLUSCP PLUS |
| Bitrate Control | CBR/VBR; H.265: 3–6144 kbps, H.264: 8–6144 kbps CP PLUSCP PLUS |
| Power & Consumption | 12 V DC or PoE (802.3af); idle ~1.9 W (DC), 2.4 W (PoE); max ~11.5 W (DC), 13.1 W (PoE) CP PLUSNbts Online |
| Environmental Rating | IP67 weatherproof; –40 °C to +60 °C; ≤95% RH; IK10 vandal resistance CP PLUSNbts Online |
| Physical Dimensions | 196.7 × 78.8 × 74.5 mm; ~320 g; metal + plastic casing CP PLUSCP PLUS |
| Certifications & Warranty | ISO9001, CE, FCC, RoHS, BIS; 2‑year warranty Nbts OnlineCP PLUS |
