CP-UNC-DA21L3C-LQ-0360
Login to view prices
-

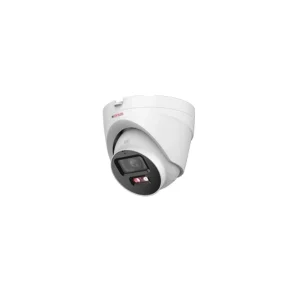

2MP Full HD Dome Camera with 1/2.8″ CMOS sensor.
-
Dual-Light Technology with Smart IR and Warm LED for true color night vision.
-
30m Night Vision Range using advanced illumination.
-
3.6mm Fixed Lens offering wide 87° horizontal view.
-
Triple Stream Support with H.265 and InstaStream for efficient video compression.
-
Built-in Microphone for real-time audio recording.
-
DWDR, BLC, HLC & 3D DNR for enhanced image clarity in challenging lighting.
-
Smart Motion Detection (SMD) with human & vehicle classification.
-
Weatherproof IP67 Design for indoor/outdoor installations.
| Feature | Specification |
| Image Sensor | 1/2.8″ 2 MP Progressive Scan CMOS (0.9071 cm) Amazon India+13Imimg+13CP PLUS+13 |
| Max Resolution | 1920×1080 @25/30 fps ImimgCP PLUS |
| Video Compression | InstaStream, H.265, H.264/H.264H/B, MJPEG (sub‑stream) ImimgCP PLUS |
| Streaming | Triple stream support ImimgCP PLUS |
| Lens | 3.6 mm fixed (2.8 mm optional), F1.6, M12 mount ImimgCP PLUS |
| Field of View | H: 87°, V: 44°, D: 105° (3.6 mm) CP PLUSmegajaipur.com |
| Min. Illumination | 0.005 lux @F1.6 (color); 0.0005 lux B/W; 0 lux with IR on Imimgmegajaipur.com |
| IR / Warm Light | 1 dual light LED; 30 m smart IR & warm light range Imimgmegajaipur.com |
| Day/Night | ICR auto/manual; color/B&W modes ImimgCP PLUS |
| Image Enhancements | DWDR/BLC/HLC, 3D DNR, ROI (4 areas), privacy mask (4), digital watermarking, AGC, AWB ImimgCP PLUS |
| DORI Ranges (3.6 mm) | Detect 58.9 m; Observe 23.6 m; Recognize 11.8 m; Identify 5.9 m ImimgCP PLUS |
| Shutter Speed | 1/3–1/100,000 s (auto/manual) ImimgCP PLUS |
| Audio | Built‑in mic; G.711a/μ, PCM, G.726, AAC Imimgmegajaipur.com |
| Network & Security | IPv4/IPv6, HTTP/S, TCP/IP, RTP/RTSP, SFTP, SNMPv3, TLS 1.2, ONVIF S/G/T; AES‑256, certificate, WSSE, syslog, account lockout, IP/MAC filter CP PLUSImimg |
| Smart Search | Compatible with CP Plus Smart NVRs ImimgCP PLUS |
| Smart Detection | Human & vehicle SMD; motion detection (4 zones) CP PLUSImimg |
| Bitrate | H.265: 3–6144 kbps; H.264: 8–6144 kbps (CBR/VBR) CP PLUSImimg |
| Power | 12 V DC or PoE (802.3af); Idle: 1.4 W (DC)/2.2 W (PoE); Max: 3.3 W (DC)/4.4 W (PoE) megajaipur.comCP PLUS |
| Environmental | IP67; –40 °C to +60 °C; ≤95 % humidity, non‑condensing megajaipur.comCP PLUS |
| Adjustability | Pan 0–360°, Tilt 0–78°, Rotation 0–360° ImimgCP PLUS |
| OSD & Rotation | Title/date/time overlay; 0°/90°/180°/270° rotation (2 MP or lower) CP PLUSImimg |
| Dimensions & Weight | Ø109 × 85.5 mm; ~220 g; metal + plastic casing megajaipur.comCP PLUS |
| Certifications | ISO9001, CE, FCC, RoHS, BIS CP PLUSmegajaipur.com |
