CP-UNC-DA41PL3-Y
Login to view prices
-

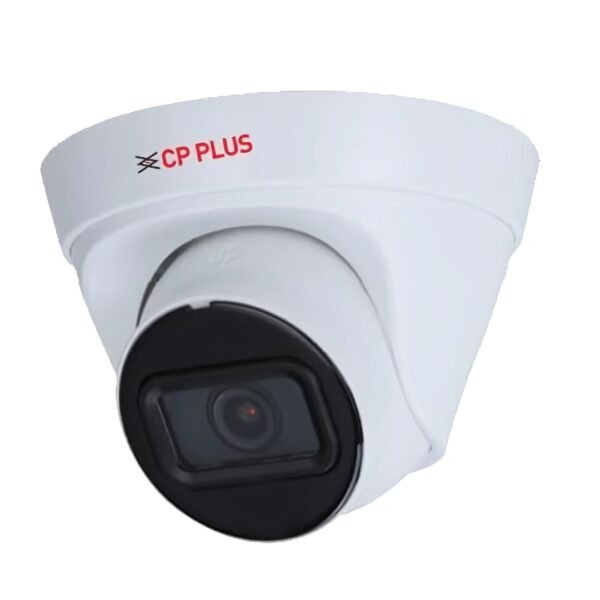

4MP Full HD Dome Camera with 1/3″ Progressive Scan CMOS sensor.
-
3.6mm Fixed Lens providing ~76° horizontal viewing angle.
-
Smart IR LEDs with up to 30 meters night vision range.
-
Triple Stream Support with H.265 compression for efficient storage.
-
DWDR, BLC, HLC & 3D DNR for enhanced image quality in challenging lighting.
-
Motion Detection, ROI & Privacy Masking supported.
-
IP67 Weatherproof Dome suitable for indoor/outdoor use.
-
PoE & 12V DC for flexible power options.
-
ONVIF Compliant for easy integration with third-party systems.
| Feature | Specification |
| Image Sensor | 1/3″ 4 MP Progressive‑Scan CMOS (≈0.847 cm) document.moglix.com+13Scribd+13laxmienterprisescctvcameradealer.com+13 |
| Maximum Resolution | 2560 × 1440 @25/30 fps (max), with lower resolution options supported Scribddocument.moglix.com |
| Video Compression | Instastream, H.265, Smart H.264+, H.264/B/H, MJPEG (sub‑stream) Scribdm.askmesolutions.in |
| Streaming Capability | Dual or triple stream (main + sub‑streams) Scribdm.askmesolutions.in |
| Lens | 3.6 mm fixed‑focal lens, F2.0, M12 mount Scribdm.askmesolutions.in |
| Field of View | Approx. 76° H × 40° V; 92° diagonal m.askmesolutions.indocument.moglix.com |
| Minimum Illumination | 0.01 lux @ F2.0 (Color, 30 IRE); 0.001 lux @ F2.0 (B/W); 0 lux with IR on m.askmesolutions.indocument.moglix.com |
| IR Night Vision | Smart IR LEDs with up to 30 m range ScribdIndustry Buying |
| Day/Night & Image Enhancements | True Day/Night (ICR), DWDR, BLC, HLC, 3D‑DNR, ROI, AGC, AWB Scribdm.askmesolutions.in |
| Smart Features | Motion detection (4 zones), privacy mask (4 zones), digital watermarking m.askmesolutions.indocument.moglix.com |
| Network & Software | IPv4/6, HTTP/S, RTP/RTSP, ONVIF, InstaOn cloud, mobile apps (iCMOB/gCMOB), KVMS Pro CMS Scribdmegamindindia.in |
| Power & Consumption | PoE (802.3af) and 12 VDC; idle ~1.4 W (DC) / ~2.1 W (PoE); max ~3 W (DC) / ~4.2 W (PoE) Industry Buyingdocument.moglix.com |
| Storage & Bandwidth | Bitrate: H.265: 12–4096 kbps, H.264: 32–4096 kbps; Bitrate control: CBR/VBR m.askmesolutions.inIndustry Buying |
| Physical Specs | Dimensions: ~103 × Ø109.9 mm; Weight: ~240 g; Plastic casing Industry Buyingm.askmesolutions.in |
| Weather Rating | IP67 – suitable for outdoor use Industry Buyingdocument.moglix.com |
| Certifications | Industry standard (CE/FCC/RoHS/BIS unspecified) megamindindia.indocument.moglix.com |
