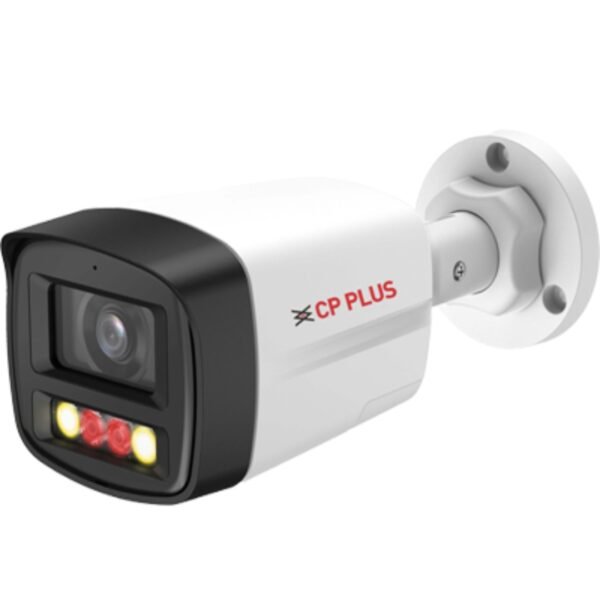

CP-UNC-DA41L3B-D-LQ-0360
Login to view prices
-
🔹 4MP Ultra HD Resolution – Captures clear, high-quality surveillance footage
-
🔹 Built-in Mic & Speaker – Supports real-time two-way communication
-
🔹 Full-Color Night Vision – Dual-light technology for 24/7 color monitoring
-
🔹 Fixed 3.6mm Lens – Wide viewing angle, ideal for indoor/outdoor areas
-
🔹 Smart IR + Warm Light – Night visibility up to 30 meters
-
🔹 Triple Stream with H.265+ – Efficient bandwidth and storage usage
-
🔹 Advanced Motion Detection – Includes human/vehicle detection and tamper alerts
-
🔹 PoE & 12V DC Support – Easy installation with flexible power options
-
🔹 IP67 Weatherproof Housing – Built for harsh environments
| Category | Specification |
| Model | CP‑UNC‑DA41L3B‑D‑LQ‑0360 |
| Camera Type | 4 MP Color Hybrid Dome with built‑in mic & speaker (two‑way audio) CCTV Chennai+11CP Plus World+11RS Infotech Ajmer+11 |
| Sensor & Resolution | 1/2.8″ PS CMOS; up to 4 MP (2688×1520 or 2560×1440) @ 25/30 fps CP Plus WorldCP Plus World |
| Lens | Fixed 3.6 mm (H:78°, V:42°, D:92°); optional 2.8 mm; F1.4–F1.6 aperture CP Plus WorldCP Plus World |
| Video Compression | Instastream, H.265, H.264/H.264B/H.264H, MJPEG; triple-stream CP Plus WorldCP Plus World |
| Frame Rates | Main: 4 MP @ 1–25/30 fps; Sub: 720p/CIF/VGA at up to 30 fps CP Plus WorldIndustry Buying |
| Day/Night Mode | Auto (ICR), Color, B&W modes CP Plus WorldCP Plus World |
| Illumination | Dual-light with IR + warm LEDs; up to 30 m range CP Plus WorldCP Plus World |
| Image Enhancement | WDR 120 dB, BLC, HLC, AGC, AWB, 3D-DNR, privacy mask & ROI (4 areas) CP Plus WorldCP Plus World |
| Smart Analytics | Motion detection, tamper, audio detection, intrusion/line-cross, human/vehicle SMD CP Plus WorldCP Plus World |
| Two-Way Audio | Integrated mic + speaker; codecs: G.711a/μ, PCM, G.726, AAC CP Plus WorldCP Plus World |
| Protocols & Cybersecurity | TCP/IP, IPv4/IPv6, HTTP/S, RTSP, ONVIF S/G/T, HTTPS, TLS 1.2, AES-256, IP/MAC filtering, WSSE, account lockout CP Plus WorldCP Plus World |
| Network Interface | 10/100 Mbps Ethernet (RJ-45); PoE (802.3af) or 12 V DC CP Plus WorldCP Plus World |
| Users & Bandwidth | Supports up to 6 users; bandwidth ~36 Mbps CP Plus WorldIndustry Buying |
| Power Consumption | Idle: ~2 W; Max: ~4.7 W (PoE, with warm light & WDR) CP Plus WorldIndustry Buying |
| Operating Conditions | –40 °C to +60 °C; ≤95 % RH (non‑condensing) CP Plus WorldCP Plus World |
| Ingress & Build | IP67 weatherproof; durable dome casing (plastic/metal) CP Plus WorldIndustry Buying |
