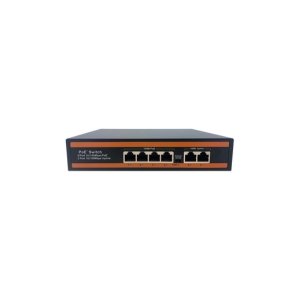

Zebronics 4 Port POE SWITCH (ZEB-4PPM2UM)
Login to view prices
- 4 Self Adaptive PoE Ports
- Dual 100M Uplink Ports
- 250m Extended Transmission (Max.)
- 75W Output (Max.)
- Upto 30W Per Port
- Full Duplex
- High Data Rate
- Wide Compatibility
- Flexible Mounting
- Dynamic Power Control
- Short Circuit Protection
- Voltage Protection
- Anti Interference Capability
- Lightning Protection
Description
| Connector Type | 4 Ports 10/100M PoE + 2 Ports 10/100M Ethernet Uplink |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
| PoE Parameters | PoE Standard: IEEE802.3af/at (15.4W) & IEEE802.3at (30W) |
| PoE Compatibility: IEEE802.3af/at Self Adaptive | |
| Power Pin Assignment : MODE A Â [1/2(+), 3/6(-)] | |
| Network Media | 10BASE-T: (<200 Meters) |
| 100BASE-TX: (<100 Meters) | |
| Power Supply | Input: AC110-240V, 50/60Hz |
| Output: 30W Per Port | |
| Power Budget: 75W | |
| Performance Specification | Bandwidth: 1.2Gbps |
| MAC: 1K | |
| Packet Buffer Memory: 1 Mbits | |
| 10M Packet Forwarding Rate: 14880pps/port | |
| 100M Packet Forwarding Rate: 148800pps/port | |
| LED Indicator | Power (Red): Lit – Powered, Unlit – No Power |
| Ethernet : Flash – Data Transmit, Unlit – Disconnect | |
| Working Environment | Operating Temperature: 25°C ~ 50°C |
| Storage Temperature: 20°C ~ 70°C | |
| Operating Humidity: Max 15 ~ 90%, Non-Condensing | |
| Storage Humidity: Max 10 ~ 95%, Non-Condensing | |
| Physical Parameter | |
| Product Dimension (W x D x H) | 20.2 x 14 x 4.5 cm |
| Package Dimension (W x D x H) | |
| Net. Weight | 950g |
| Port Surge Protection | 6KV |
| Forwarding Mode | Cut through Switching |
| Country of Origin | India |
| Package Contents | |
| Ethernet Switch | 1U |
| Power Cord | 1U |
| QR Code Guide | 1U |
