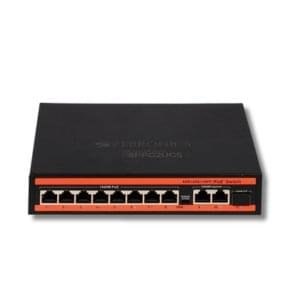

Zebronics 8Port Full Giga Poe Switch with SFP Port(Zeb 8PPG2UGS)
Login to view prices
- 8 Self Adaptive Gigabit PoE Ports
- Dual Gigabit Uplink Ports
- 100m Transmission (Max.)
- 150W Output (Max.)
- Upto 30W Per Port
- High Data Rate
- Wide Compatibility
- Flexible Mounting
- Short Circuit Protection
- Voltage Protection
- Anti Interference Capability
- Lightning Protection
- SFP port
- Wall Mount Provision
Description
| Connector Type | 8 Ports 1000M PoE + 2 Ports 1000M Ethernet Uplink + 1SFP port |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) |
| PoE Compatibility: IEEE802.3af/at Self Adaptive | |
| Power Pin Assignment : MODE A [1/2(+), 3/6(-)] | |
| Network Media | 10BASE-T: <250 meters |
| 100BASE-TX: <100 meters | |
| 1000BASE-T: <100 Meters | |
| Power Supply | Input: AC110-240V, 50/60Hz |
| Output: 30W Per Port | |
| Power Budget: 150W | |
| Performance Specification | Bandwidth: 22Gbps |
| MAC: 2K | |
| Packet Buffer Memory: 1 Mbits | |
| 10M Packet Forwarding Rate: 14880pps/port | |
| 100M Packet Forwarding Rate: 148800pps/port | |
| 1000M Packet Forwarding Rate: 1488000pps/port | |
| LED Indicator | Power (Red): Lit – Powered, Unlit – No Power |
| Ethernet : Flash – Data Transmit, Unlit – Disconnect | |
| Working Environment | Operating Temperature: 25°C ~ 55°C |
| Storage Temperature: 20°C ~ 70°C | |
| Operating Humidity: Max 25 ~ 90%, Non-Condensing | |
| Storage Humidity: Max 20 ~ 95%, Non-Condensing | |
| Physical Parameter | Product Dimension (W x D x H) : 19 x 12.5 x 4 cm |
| Package Dimension (W x D x H) : 21x 19.9 x 4.8 cm | |
| Net. Weight | 610 g |
| Transmission Distance | Data Transmission Distance: 250 (Max.) |
| PoE distance upto 100 meters via Cat.6 | |
| Port Surge Protection | 4KV |
| Forwarding Mode | Store and forward |
| Country of Origin | India |
| Package Contents | |
| Ethernet Switch | 1U |
| Power Cord | 1U |
| QR Code Guide | 1U |
