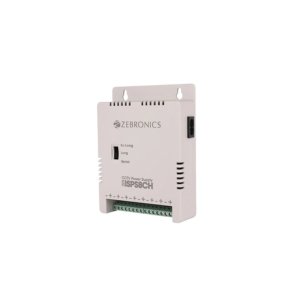

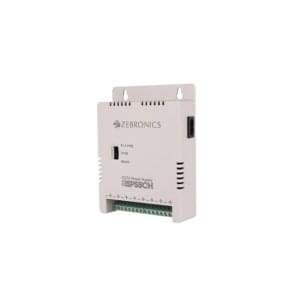

Zebronics 8CH SMPS (ZEB-ISPST8CH)
Login to view prices
Description
| Input Voltage range | AC100V-240V |
| Input Frequency | 50HZ/60HZ |
| Input Current | 0.75A |
| Output Voltage | DC12V |
| Output Current | 4.2A |
| Output Power (W) | 50W |
| Ripple | 100mV |
| Hold up Time | 16 |
| Turn-on Delay time | 2 seconds |
| Rise & Fall time | 20 msec |
| Output Voltage range | |
| Normal | 11.60-12.60V |
| Medium | 12.40-13.40V |
| High | 13.40-14.40V |
| Over Load Protection | Yes |
| Over Voltage Protection | Yes |
| Short circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Operation Temperature | -10° to 50° C |
| Storage Temperature | -10° to 50° C |
| Operation Humidity | 10% — 90% non condensing |
| Storage Humidity | 10% — 90% non condensing |
| Input Terminals | 8-tail socket |
| Output Terminals | European terminal |
| LED Indicators | Red |
| Enclosure Material | Plastic |
| Weight with power cord | 320gm |
| Dimensions (W x D x H) | 14.32 x10.8 x 3.42cm |
| Country of Origin | India |
| Package Contents | |
| Power Supply | 1 Unit |
| Power Cord | Included (1 Meter) |
