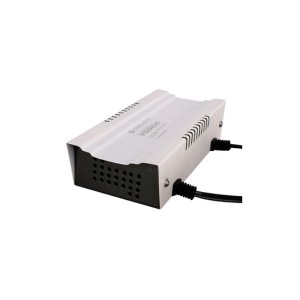

Zebronics 4ch SMPS (ZEB-PSSO4CH)
Login to view prices
- DC 12V
- Short Circuit Protection
- Over Voltage Protection
- Over Load Protection
- Metal body
Description
| Input Voltage range | AC 110V~240V |
| Input Frequency | 50/60 HZ |
| Input Current | 0.4A |
| Output Voltage | 12.3V – 12.8V |
| Ripple | <500mv |
| Hold up Time | 10 ms |
| Turn-on Delay time | 30 ms |
| Rise & Fall time | 30 ms |
| Over Load Protection | Yes |
| Over Voltage Protection | Yes |
| Short circuit Protection | Yes |
| Over Temperature Protection | Yes |
| Operation Temperature | 0°C to 45°C |
| Storage Temperature | 0°C to 55°C |
| Operation Humidity | 10% — 90% non condensing |
| Storage Humidity | 10% — 90% non condensing |
| Input terminals of the power supply unit | 2 Pin Indian power cord – non detachable |
| Output terminals of the power supply unit | 1 Terminals output |
| LED Indicators | 1 |
| Enclosure Materials | Metal Body |
| Weight with power cord | 347g |
| Dimensions (W x D x H) | 17.2 x 7.83 x 4.26 cm |
| Country of Origin | India |
| Package Contents | |
| CCTV Power Supply | 1 U |
